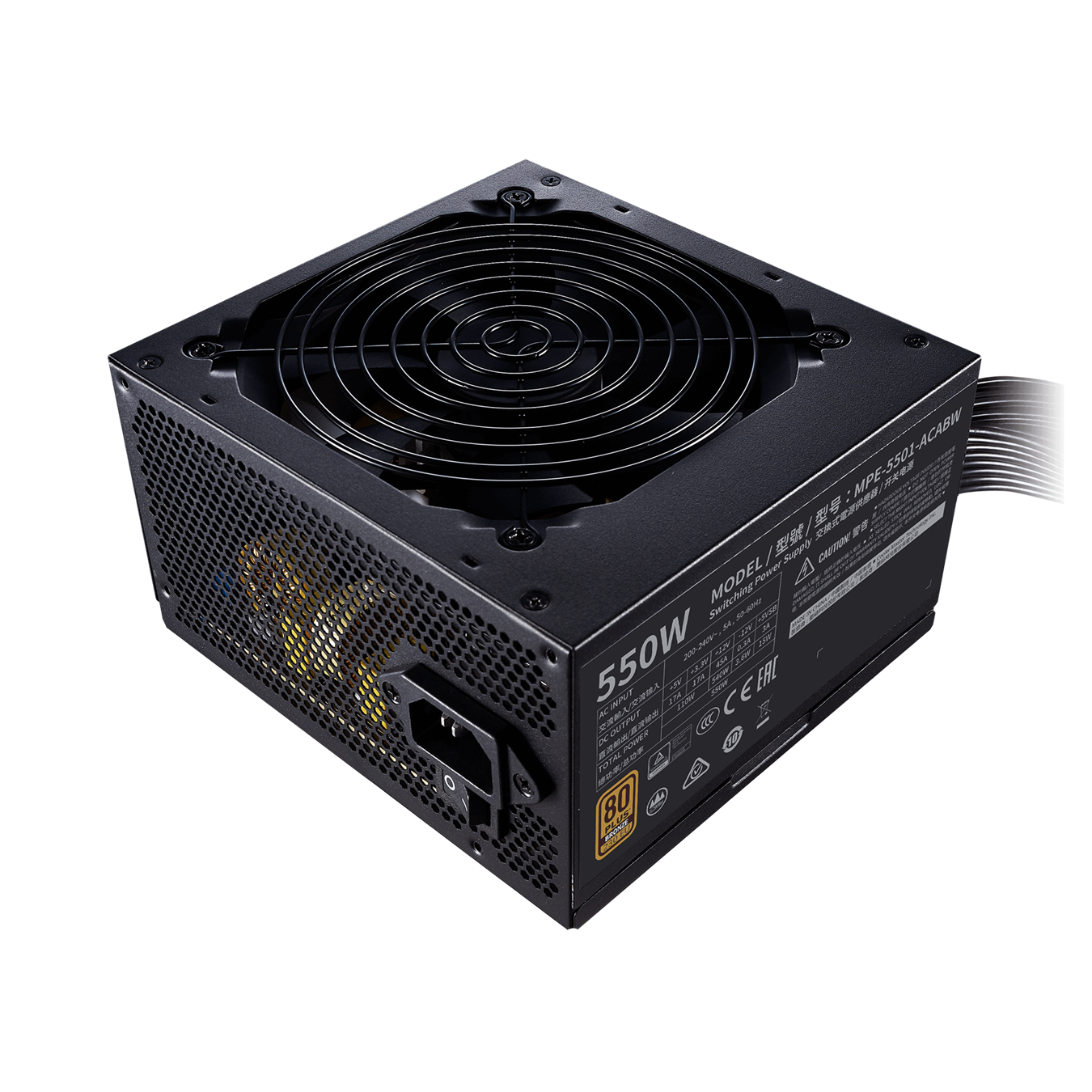

Productinformatie
-
Standaard ATX Kenmerken
Vermogen 550 Watt Modulair Nee 80+ Efficiency Ja 80+ Certificaat Bronze 230V EU Aantal PCIe 6+2-pins 2
Kenmerken
Aantal CPU 4+4-pins 1 Power Switch Ja Koeling Actief Geluidsniveau 28.2 dBA Aantal Molex connectoren 3 Aantal SATA connectoren 4 Aantal Floppy connectoren 1
- PRODUCT NAME
- MWE Bronze 450
- MODEL
- MPX-4501-ACAAB
- ATX VERSION
- ATX 12V V2.31
- PFC
- Active PFC
- OPERATION VOLTAGE
- 100-240Vac
- INPUT VOLTAGE
- 100-240Vac
- INPUT CURRENT
- 8-4A
- INPUT FREQUENCY
- 50-60Hz
- DIMENSIONS (L X W X H)
- 140 x 150 x 86 mm
- FAN SIZE
- 120mm
- FAN BEARING
- LDB
- POWER GOOD SIGNAL
- 100-500ms
- HOLD UP TIME
- 16ms at 80% Load
- EFFICIENCY
- 85% Typically
- ERP 2013 LOT 6
- Yes
- MTBF
- >100,000 Hours
- OPERATING TEMPERATURE
- 0-40°C
- PROTECTIONS
- OVP, OPP, OTP, SCP, OCP
- REGULATORY
- TUV-RH, CE, CCC, KC, EAC, RCM, cTUVus, FCC, BSMI
- MB 20+4 PIN CONNECTORS
- 1
- CPU 12V 4+4 PIN CONNECTORS
- 1
- SATA CONNECTORS
- 4
- PERIPHERAL 4-PIN CONNECTORS
- 3
- FDD CABLE 4-PIN CONNECTORS
- 1
- PCI-E 6+2 PIN CONNECTORS
- 2
- 80 PLUS
- Bronze
- MODULAR
- Non Modular
- WATTAGE
- Under 500W
- SERIE
- MWE Bronze Series
Document
P/N | EAN | UPC |
MPX-4501-ACAAB-AU | 4719512061428 | 884102034107 |
MPX-4501-ACAAB-BR | 4719512061435 | 884102034114 |
MPX-4501-ACAAB-EU | 4719512061404 | 884102034084 |
MPX-4501-ACAAB-JP | 4719512061442 | 884102034121 |
MPX-4501-ACAAB-KR | 4719512061459 | 884102034138 |
MPX-4501-ACAAB-UK | 4719512061374 | 884102034053 |
MPX-4501-ACAAB-BU | 4719512061473 | 884102034152 |
MPX-4501-ACAAB-TW | 4719512061398 | 884102034077 |
MPX-4501-ACAAB-US | 4719512061381 | 884102034060 |
MPX-4501-ACAAB-U1 | 4719512061381 | 884102034060 |
Specificaties
Algemeen
EAN:
4719512104071
Merk:
Cooler Master
Model Nummer:

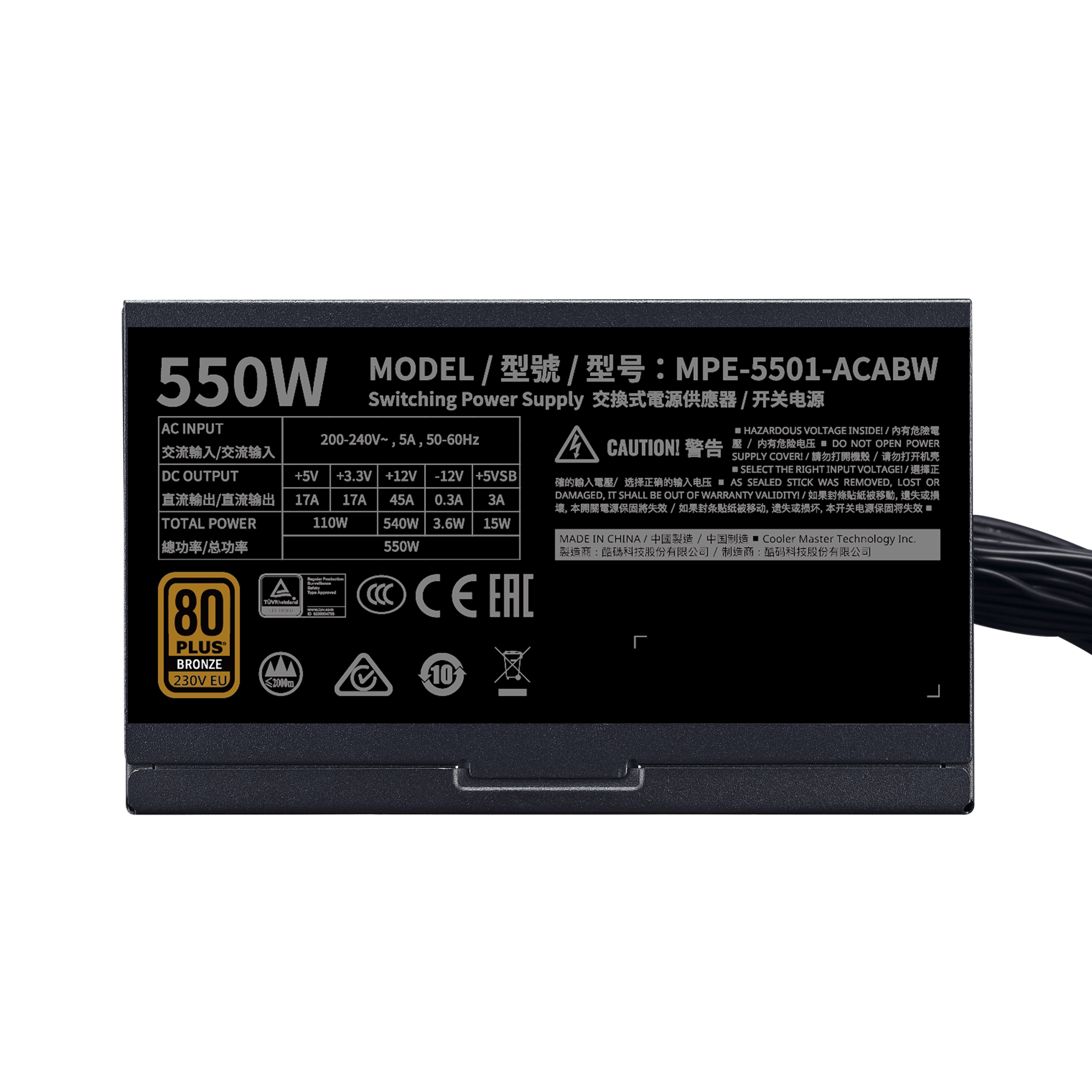

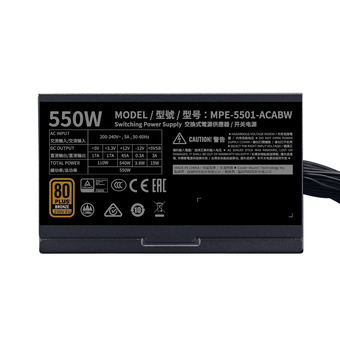

MPE-5501-ACABW-BEU
Productserie:
MWE
Garantie:
5 jaar
Energie
Voeding:
550W
Uiterlijk
Kleur Product:
Zwart
Product Afmetingen:
140 x 150 x 86 mm
