TP-Link TL-SG1005P-PD 10/100/1000 Mbit/s 5 poort Gigabit switch met 1-poort PoE++ in en 4-poort POE+ uit

€ 55,00

(incl. btw.)

CODE: TL-SG1005P-PD

Hoeveelheid:

+ −

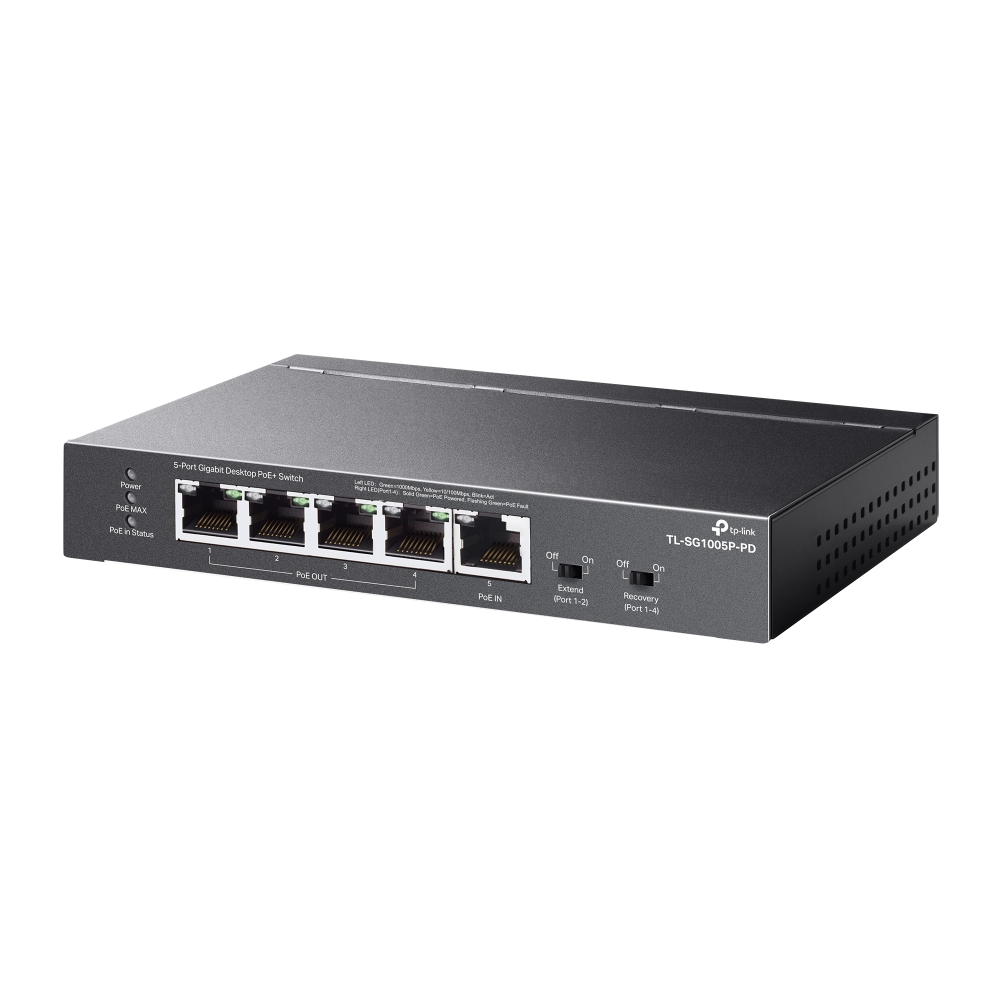

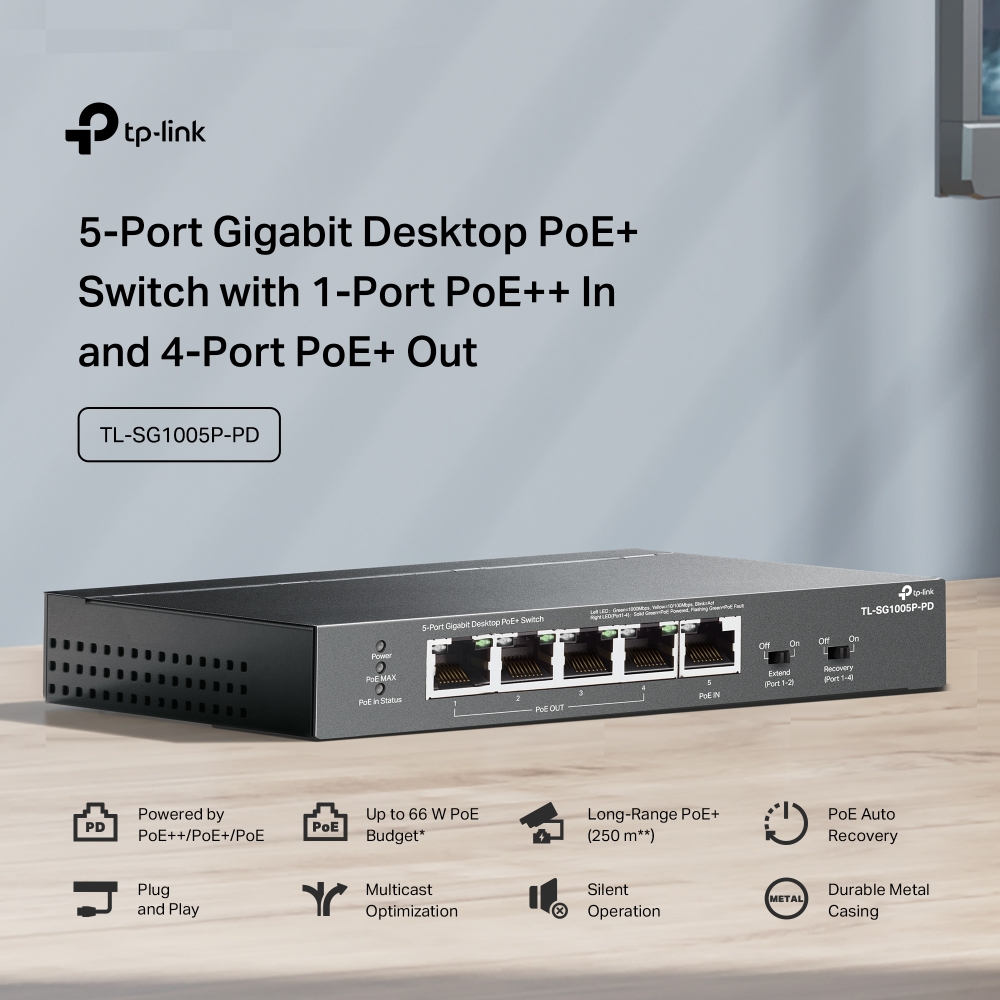

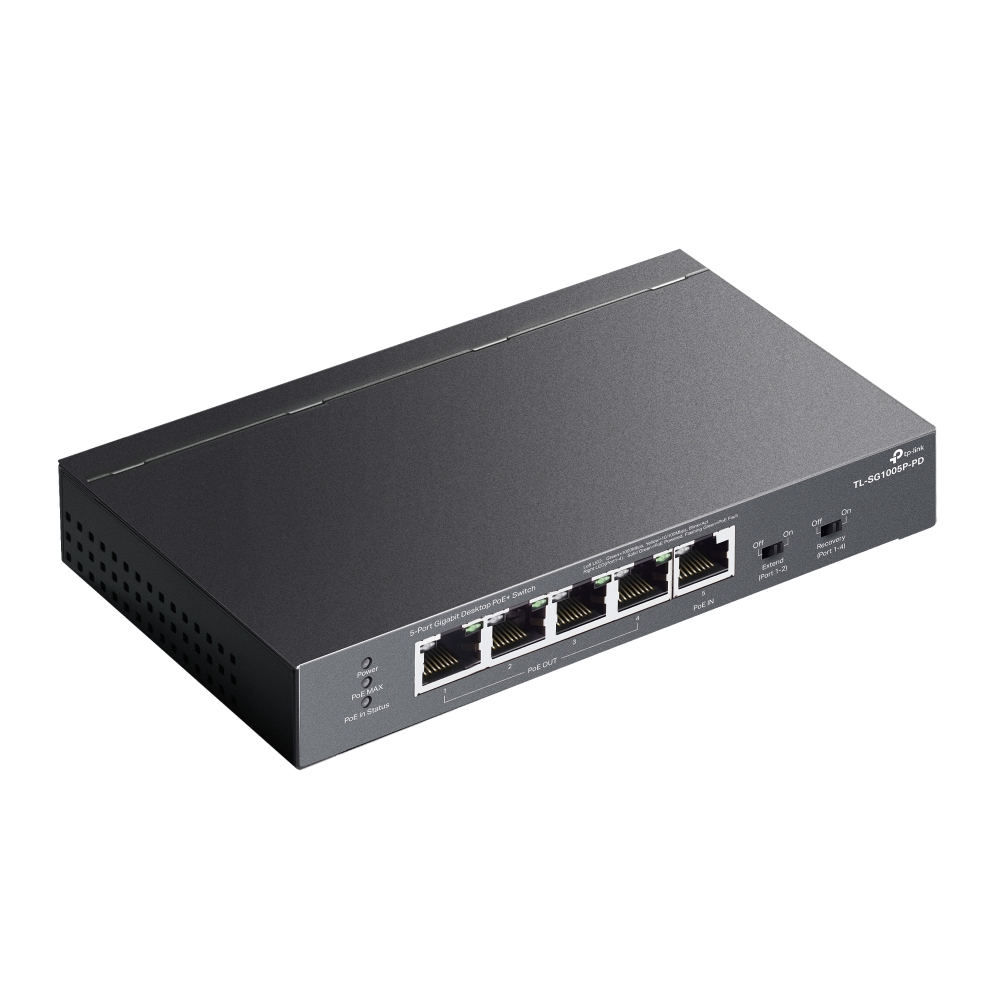

5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out

Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*
Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.

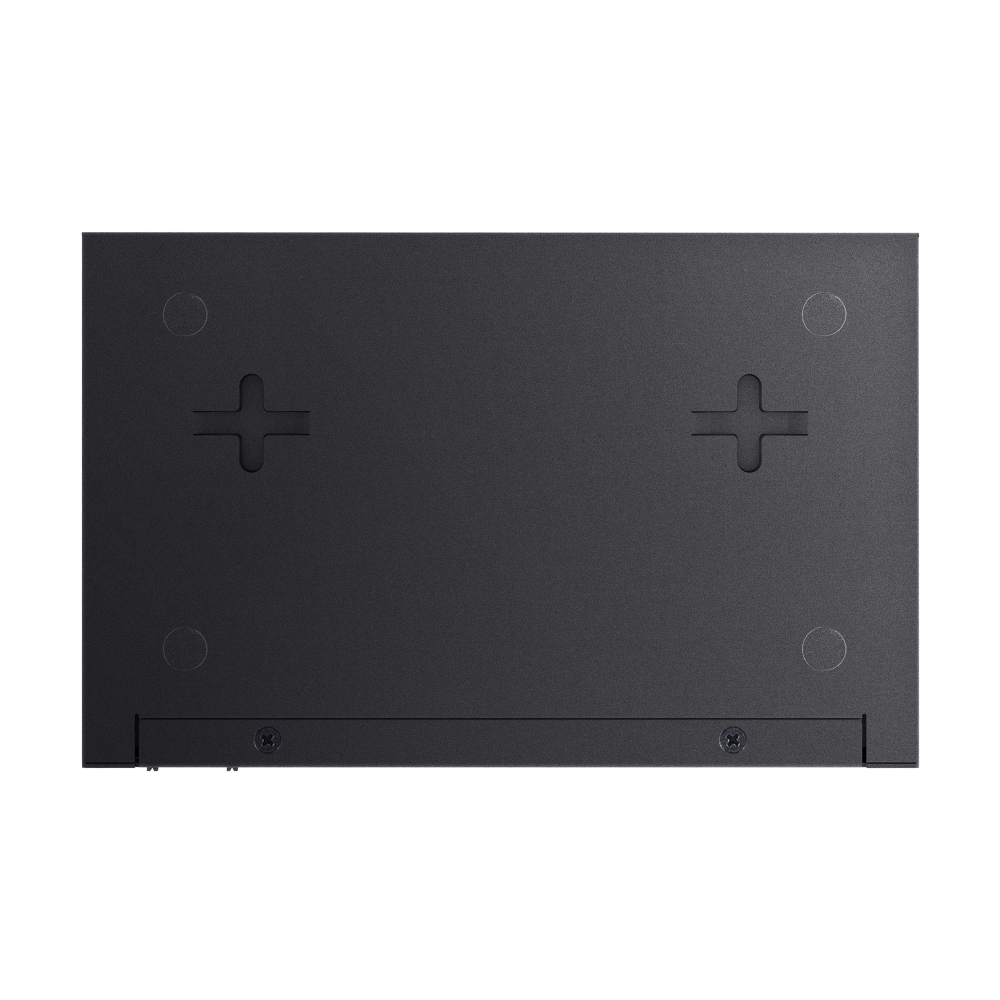

Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
Plug and Play: No configuration and installation required.
Power Supply: The product only supports PoE power supply, not AC or DC power supply.

Functionaliteit van de Hardware
Standaarden en protocollen	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p

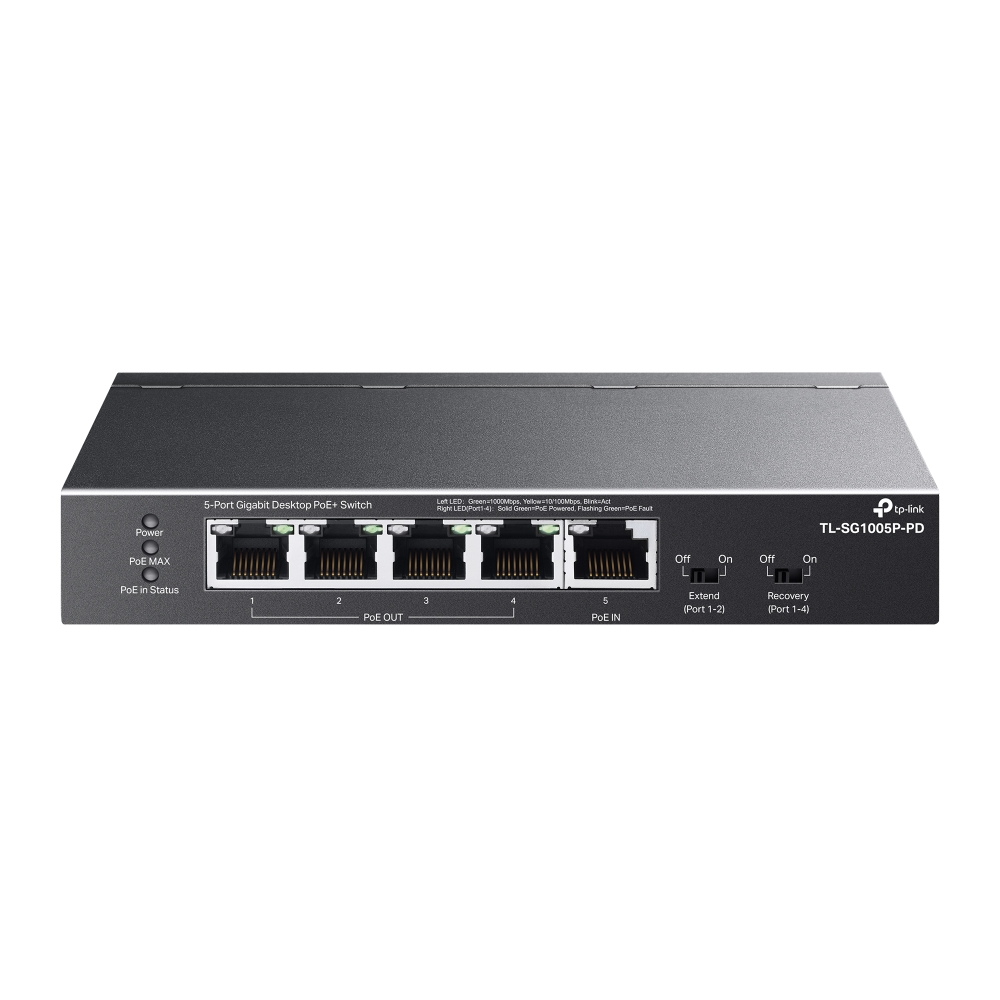

Interface	• 5× 10/100/1000Mbps RJ45 Ports • 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4) • 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at) • AUTO Negotiation • AUTO MDI/MDIX
Netwerkmedia	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Ventilator Aantal	Fanless
Uitgangsvermogen	Only Powered by PoE Device

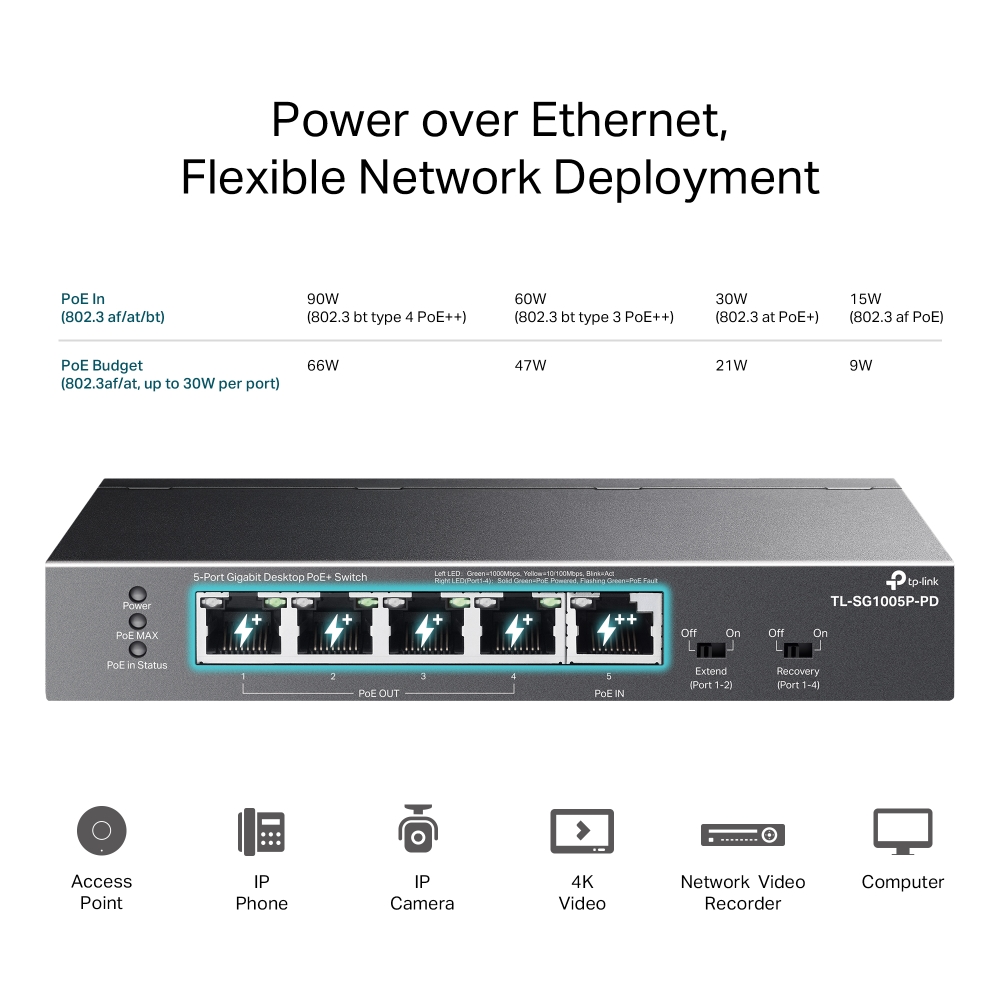

PoE Ports (RJ45)	• PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4 • PoE Out Ports: Ports 1-4, compliance with 802.3af/at • PoE Power Budget: -66 W when powered by 802.3bt Type 4 (90 W) -47 W when powered by 802.3bt Type 3 (60 W) -21 W when powered by 802.3at (30 W) -9 W when powered by 802.3af (15.4 W)
Afmetingen ( B x D x H )	6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Max Power Consumption	• 2.68 W (90W PoE In, with no PD connected) • 68.59 W (90W PoE In, with 66 W PD connected)
Max Heat Dissipation	• 9.112 BTU/h (90W PoE In, with no PD connected) • 233.206 BTU/h (90W PoE In, with 66 W PD connected)

Functionaliteit van de Software

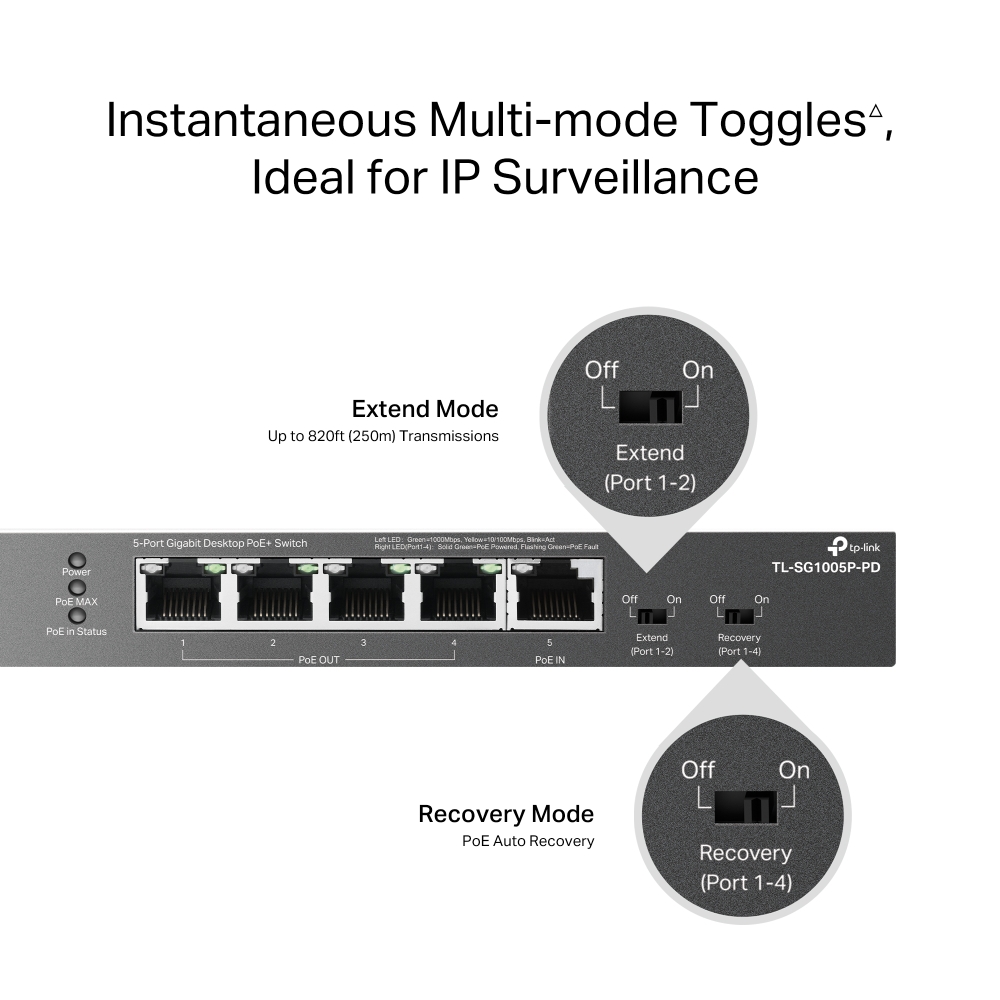

Geavanceerde Functies	• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-4) • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping
Overdrachtsmethode	Store-And-Forward

Overige
Certificatie	CE, FCC, RoHS
Pakketinhoud	• TL-SG1005P-PD • Installation Guide
Omgeving	• Operating Temperature: -30–70 ℃ (-22–158 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

IGMP Snooping (IPTV compatible):

Power over Ethernet (PoE):

Merk:

TP-Link

Aantal Ethernet LAN (RJ-45)-poorten:

Kleur Product:

Donkergrijs
