Productinformatie
- All-in-One Device: ADSL2+ Modem, NAT Router, 4-Gigabit-Port Switch and Wireless N Access Point
- 300Mbps Wireless speed and Gigabit Ethernet ports, ideal for multiple HD video streams
- Versatile Connectivity: ADSL or Ethernet WAN for multiple Internet connection types
- 2 USB ports for storage sharing, printer sharing, FTP Server and Media Server
What This Product Does

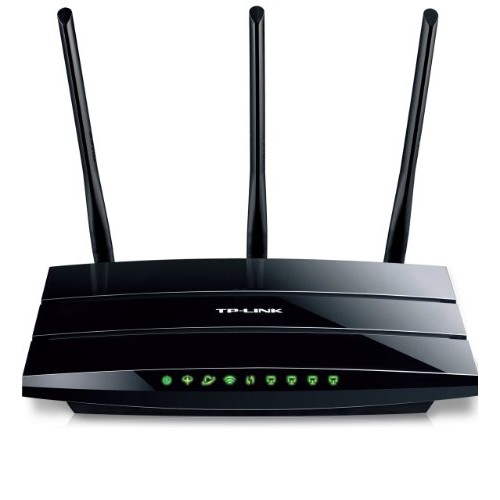

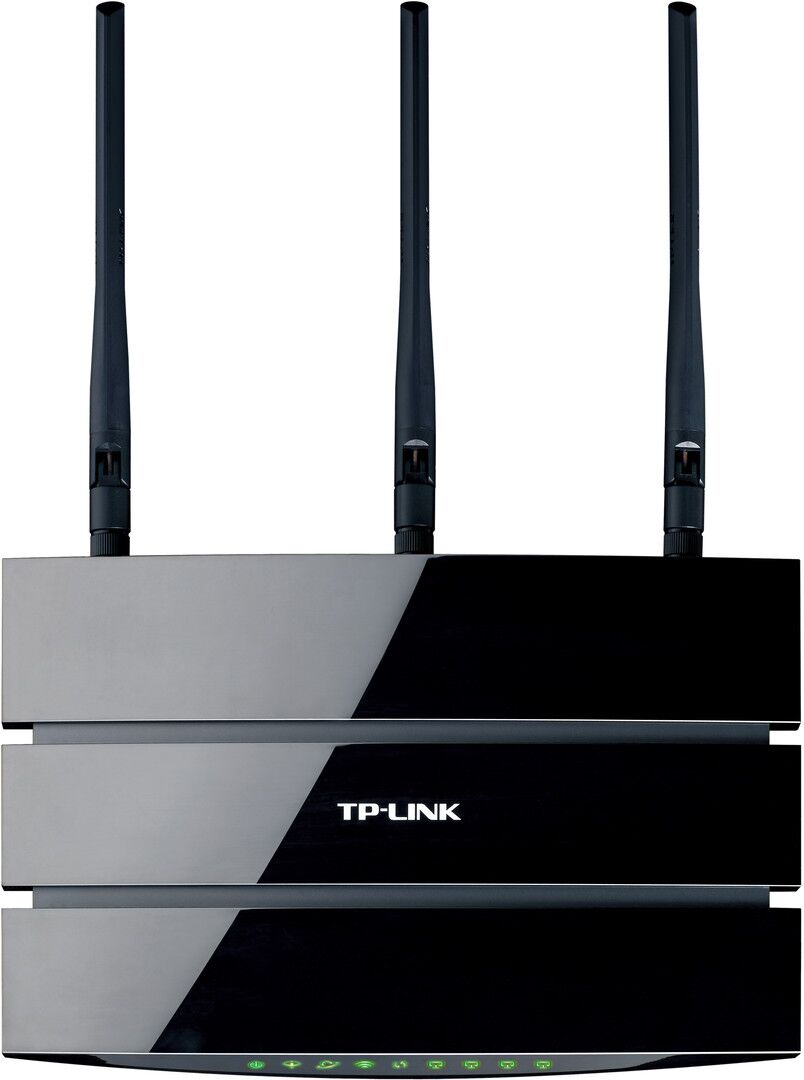

TP-LINK’s TD-W8970 300Mbps Wireless N Gigabit ADSL2+ Modem Router is an incredibly robust all-in-one device allowing users to access high-speed internet connections and share them wirelessly at blazing 300Mbps wireless speeds or by using one of its 4 Gigabit LAN ports. With 2 multifunctional USB ports, users can share printers, files and media across the local network or the internet. What’s more, this All-in-one device allows for two different connection types: ADSL, or Ethernet WAN, giving users the flexibility to access the Internet whichever method is most convenient.
Clear up your desktop!
The TD-W8970 does the work of several networking devices packed into one sleek device. With an ADSL2+ modem, NAT router and 300Mbps wireless access point, this device eliminates the need to purchase multiple devices to access and share a high-speed internet connections.
Full Gigabit Ports - More Power to You
With 300Mbps 802.11n wireless and 4 Gigabit LAN ports, the TD-W8970 is the ideal choice for bandwidth heavy users that rely on speedy, reliable connections for bandwidth intensive work or entertainment such as lag-free conference calls, HD video streaming or online gaming.
2 USB Sharing Ports - Easy Sharing
Using the TD-W8970’s two multi-functional USB 2.0 ports, users can share printers, files and media either throughout the network at home with several different computers or even away, using the device’s FTP server functions so that you never have to part with your files.
Interchangeable LAN/WAN Port - Versatile Connectivity
The TD-W8970 supports ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections among ADSL, cable or fiber modem using its interchangeable LAN/WAN port. This unique feature makes it easier when users need to change to fiber or cable services when necessary.
IPv6 Ready
This device supports IPv6, which is foundational to the next generation Internet and enables a range of new services and improved user experiences.
Virtually Impregnable
The ability to support up to 10 IPsec VPN tunnels simultaneously gives TD-W8970 users the flexibility to setup a virtual private network, to guarantee network security and take advantage of network access whether at home or away, for work or simply to access files from their local networks.
IP QoS – Efficient Bandwidth Control
IP QoS allows network administrators to allot a specific amount of available bandwidth to each network connected device simply by identifying it by its IP address, ensuring that those devices with critical tasks always have enough bandwidth and preventing any one device from hoarding bandwidth from the rest of the users on the network.
- All-in-One Device: ADSL2+ Modem, NAT Router, 4-Port Switch and Wireless N Access Point
- All Gigabit ports ensure ultimate transfer speeds
- Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications
- Two USB 2.0 ports support Storage Sharing (Samba or FTP), Media Server, Print Server and multi accounts
- Ethernet WAN (EWAN) offers another broadband connectivity option for connecting to Cable, VDSL or Fiber modems
- IPv6 supported, meeting the demands for the next generation Internet
- IP based Bandwidth Control makes it easier for you to manage the bandwidth of devices that connected to the modem router
- Wi-Fi On/Off Button allows users to simply turn their wireless radio on or off
- Easy one-touch WPA wireless security encryption with the WPS button
- Easy Setup Assistant with multi-language support provides a quick & hassle free installation
- SPI and NAT firewall protects end-user devices from potential attacks from the Internet
- WPA-PSK/WPA2-PSK encryptions provide user networks with active defense against security threats
- Interface Grouping binds specific LAN ports with PVCs for an enjoyable IPTV experience
- Annex M doubles the upstream data rate
- Auto-reconnect keeps user online indefinitely
- Backward compatible with 802.11b/g products
HARDWARE FEATURES | |
---|---|

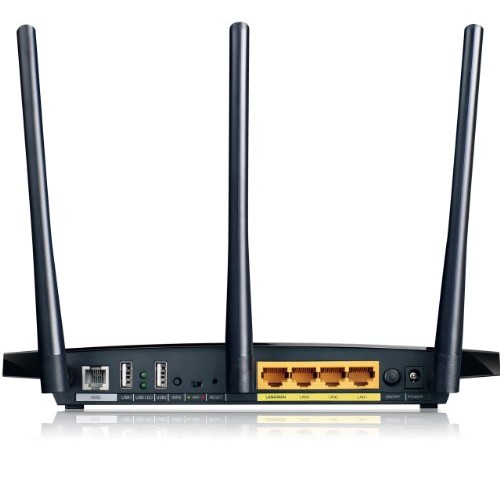

Interface | 4 10/100/1000Mbps RJ45 Ports 1 RJ11 Port 2 USB 2.0 Ports |
Button | 1 Power On/Off Button 1 WPS Button 1 Wi-Fi On/Off Switch 1 RESET Button |
External Power Supply | 12VDC/1.5A |
Dimensions (W X D X H) | 9.6*6.4*1.3 in.(243 x 160.6 x 32.5mm) |
IEEE Standards | IEEE 802.3, 802.3u |
ADSL Standards | Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.994.1 (G.hs) ITU-T G.995.1 |
ADSL2 Standards | ITU-T G.992.3 (G.dmt.bis) |
ADSL2+ Standards | ITU-T G.992.5 |
Antenna Type | Omni directional, Detachable, Reverse SMA |
Antenna Gain | 3 x 5dBi |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11b, 802.11g, 802.11n |
Frequency | 2.400-2.4835GHz |
EIRP | <20dBm(EIRP) |
Wireless Security | Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK Wireless MAC Filtering |
SOFTWARE FEATURES | |
---|---|
Quality of Service | WMM, Bandwidth Control (IP QoS) |
Port Forwarding | Virtual server, Port Triggering, UPnP, DMZ, Manage Control |
VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
ATM/PPP Protocols | ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) PVC - Up to 8 PVCs |
Advanced Features | Parent Control Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Grouping Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS |
Security | NAT Firewall, SPI Firewall, MAC / IP / URL Filtering |
USB Sharing | Storage Sharing FTP Server Media Server Print Server |
Management | Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP V1/V2C, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools |
IGMP | IGMP snooping V1/V2/V3 IGMP Multicast |
IPSec VPN | 10 IPSec VPN Tunnels LAN-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm Manual, IKE Key Management Mode Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
IPv6 | IPv6 and IPv4 dual stack Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4 Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6 |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS IPv6 |
Package Contents | TD-W8970 External Splitter RJ-11 Telephone Line RJ-45 Ethernet Cable Quick Installation Guide Resource CD Power Adapter |
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
Environment | Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
