Productinformatie
|
|
Intel LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP83), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA2011-0, LGA2011-3 (Square ILM) & AMD AM4, AM5 (included since 2019, older coolers require NM-AM4)
|
|
Height (without fan)
160 mm
|
|
Width (without fan)
150 mm
|
|
Depth (without fan)
135 mm
|
|
Height (with fan)
165 mm
|
|
Width (with fan)
150 mm
|
|
Depth (with fan)
161 mm
|
|
Weight (without fan)
980 g
|
|
Weight (with fan/s)
1320 g
|
|
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
|
|
Max. TDP
see TDP guide
|
|
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
|
|

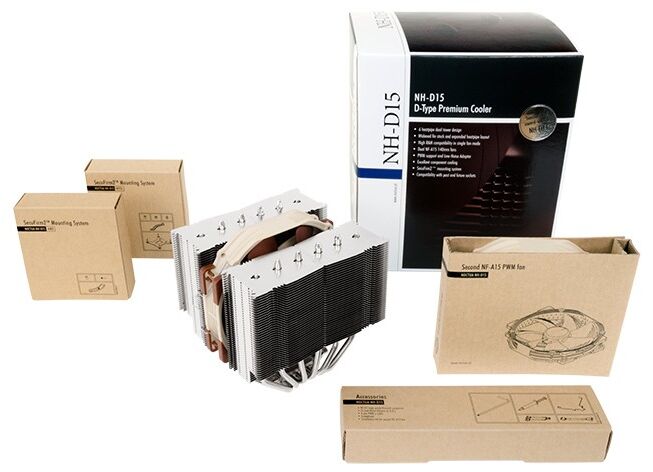

Scope of Delivery
|
|
Warranty
6 Years
|
|
||
Model
2x Noctua NF-A15 PWM
|
||
Bearing
|
||
Max. Rotational Speed (+/- 10%)
1500 RPM
|
||
Max. Rotational Speed with L.N.A. (+/- 10%)
1200 RPM
|
||
Min. Rotational Speed (PWM, +/-20%)
300 RPM
|
||
140,2 m³/h
|
||
115,5 m³/h
|
||
Max. Acoustical Noise
24,6 dB(A)
|
||
Max. Acoustical Noise with L.N.A.
19,2 dB(A)
|
||
Voltage Range
12 V
|
||
MTTF
> 150.000 h
|
![]() |
Specificaties
Algemeen
EAN:
4716123315360
Merk:
Noctua
Model Nummer:
NH-D15
Garantie:
6 Jaar
Uiterlijk
Kleur Product:
Zwart
Product Afmetingen:
161 x 150 x 165mm
Gewicht:
1320g
